FC200 is an ECU programming and chip tuning tool that supports all vehicles on the market. Forget about your old chip tuning tools with the FC200, which, unlike its counterparts, has made its mark on the year 2022 with its affordable price and performance. With the support of 4200 different ECUs, the FC200 can intervene in all vehicles on the market. You can perform all operations such as ECU flashing, module cloning, chip tuning.

OBD, Bench and Boot Modes

The FC200 can operate in all modes. In this way, there is no need to disassemble parts, drill holes or perform extra operations on many vehicles.

Free Update

CG FC200 ECU programming and chip tuning tool is updated for free during the first year, and the annual update fee after the first year is 125 USD'. If you even do not update, you will continue to perform all operations as soon as your tool turns off.

The Margin of Error Is Zero With Intelligent Diagnostics

The CG FC200 ECU Programming Tool checks your cable connections after the first connection thanks to its intelligent diagnostic feature, and if there is a faulty connection, it will not start processing. It reads the model and chip information only and only when your connections are correct. In this way, damage to your ECU is prevented in case of faulty connections.

Transmission Cloning

Harmonious Minds:

• BOSCH DQ380 SH725xx
• BOSCH DQ381 SH725xx
• VAG TEMIC DL382 TC1784
• VAG TEMIC DQ200-G2 TC1784
• VAG TEMIC DQ200-G2 PQ TC1784
• VAG TEMIC DQ200-MQB TC1766
• VAG TEMIC DQ200Dxx TC1766
• VAG TEMIC DQ250-MQB TC1766

Document and Schema Support

Thanks to the wide range of documents of the FC200, the FC200 shows you the connection method in an illustrated way before starting operations. Thanks to this, your margin of error drops to almost zero. Even if the wrong connection is made despite the document support, the intelligent diagnostic function prevents you from damaging the ECU. In short, FC200 takes precautions in advance for all mishaps that may occur in your service.

Module Cloning

Apart from the ECU reading and writing feature, you can use the FC200 for cloning and updating modules in the vehicle. Thanks to this, you can repair and backup damaged units.

ISN Reading and Writing

You can perform the ISN code reading process required to perform operations on key copying and anti-theft systems in BMW vehicles with the FC200 ECU programming tool .

BMW Click here for ISN Reading and Writing List.

Chassis Number Operations

With the FC200, you can ensure VIN repair, incompatible VIN change, and VIN compatibility on used ECUs.

4200 Different ECU Support

FC200 is an ECU programming tool supports over 4200 ECU's, increasing your operation ability on all vehicles on the market.

 European Cars

 American Cars

 Asian Cars

 Chinese Cars

 Abbas

 Can-Am

 Force

 Changan

 Alfa Romeo

 Caterpillar

 Genesis Motors

 Chery

 Aebi

 Chevrolet

 Honda

 Foday

 Artec

 Chrysler

 Hyundai

 Geely

 Aston

 Dodge

 Infiniti

 Great Wall

 Aston Martin

 Ford

 Isuzu

 Iveco

 Audi

 Ford Trucks

 Kassan

 Jianghuai

 Bentley

 Freightliner

 Kia

 Jiangling

 BMW

 GMC

 Kubota

 Lifan

 Bugatti

 Indian

 Mahindra

 Ferguson

 Citroen

 Internation

 Mitsubishi Fuso

 Valtra

 Dacia

 Jeep

 Nissan



 CASE

 Lincoln

 Subaru



 CASE Tractors

 New Holland

 Suzuki



 Dallara

 Polaris

 Toyota



 Deutz







 DS







 Ducati







 Fendt







 Ferrari







 Fiat







 Jaguar







 KTM







 Lada







 Lamborghini







 Lancia







 Land Rover







 MAN







 Maserati







 McLaren







 Mercedes-Benz







 MG







 Mini







 Opel







 Peugeot







 Piaggio







 Porsche







 Renault







 Royal Enfield







 Saab







 SEAT







 Skoda







 Smart







 Steyr







 UAZ







 Vauxhall







 Volkswagen (VW)







 Volvo







 Volvo Penta







LIST OF COMPATIBLE ECU

CG FC200 MASTER ECU Programming and Chip Tuning Tool supports over 3000+ ECUs such as KTAG, Kess, Dimsport as well as BMW ECU.

LIST OF COMPATIBLE ECU Click here for

Checksum Support.

FC200 it has automatic checksum verification feature for many ECU software.

Checksum click here for the list.

User-Friendly Interface

FC200's interface has some unique features. You can identify the ECU you have with the bosch serial number or you can find the ECU you want by entering the vehicle brand model.

In this way, you will eliminate all errors caused by the wrong version selection.

Extra Features

MED/EDC17supports the shutdown of the anti-theft system on series. (IMMO)

Bosch VAG MEDC17, BMW/Mini MEVD17/EDC17 ve Hyundai/Kia EDC17/MED(G)17supports TPROT shutdown operation on it.

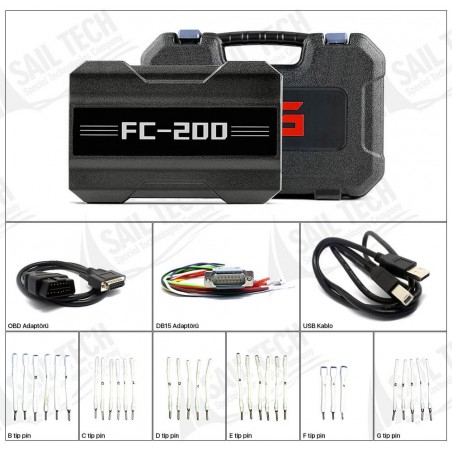

Hardware Content:

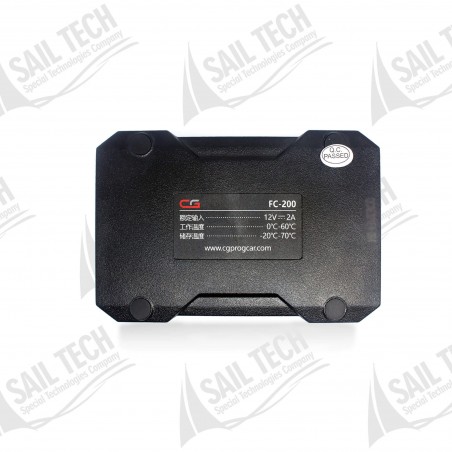

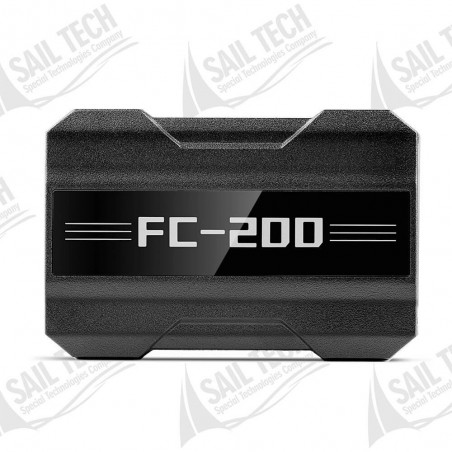

• CG-FC200 Host

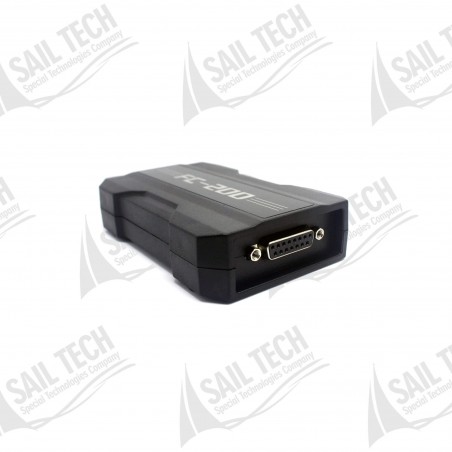

• DB15 The Adapter
• Multifunctional wiring harness
• OBD Adapter

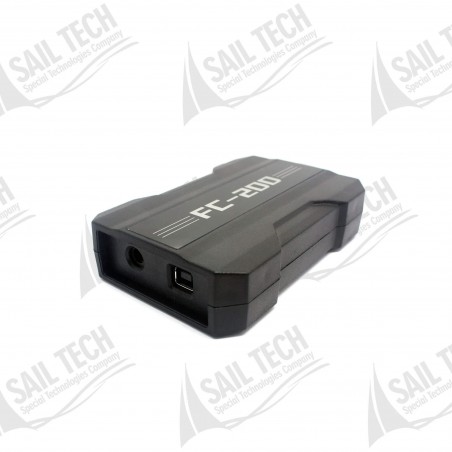

• USB Cable Host

Update Notes

V1.0.6.0

Newly added Bosch engine models:

• EDC17C19
• EDC17C73
• EDC17C10
• ME17.5.6
• ME17.5.20
• ME17.5.24
• ME17.9.5
• ME17.9.71
• MEVD17.4.4
• MG1CS042AA
• EDC17C10
• EDC17U01

Newly added motor brains / VIN Function Editing

• EDC17C63
• EDC17C76
• EDC17C79
• EDC17CP52
• MEG17.9.12
• MED17.8.10
• MED17.8.32
• MED17 (Domestic)
• MED17.9.8
• ME17.8.8
• ME17.9.23
• ME17.9.64
• MEG17.9.8

CG FC200 Latest Update Information:

​​​​​​​CG FC200 V1.2.1.0 Registered Version (2024.06.25)

1. Added China DELPHI ECU, supporting OBD and BENCH modes:

MT20U MC912DT128

MT22U MC9S12XET256

MT20U2 MC9S12KG256

MT22.1 MC9S12XEQ512

MT22.1.1 MC9S12XET256

2. Added DELPHI ECU:

BENCH mode:

China DCM7.24

China DCM7.1AP

Hyundai/Kia DCM7.1AP

Tata DCM2.5

BOOT mode:

DCM2.7AP

3. Added DENSO ECU:

Toyota:

GEN3 R7F701202

GEN3 R7F701216

Mazda:

Pxxx SH72543

S5xx SH72546

SHxx SH72543

Suzuki:

33920-xxxx_1N83 MPC5746

4. Add PFlash verification function to Denso ECU

5. Add PFlash/ExtFlash verification function to BOSCH MPC5xx ECU

6. Optimize Flash verification function for BOSCH MG1/MD1 ECU

1. Added CONTINEN type ECU: SID209, SIM2K-341 (ECU)

2. Optimize the verification function of BOSCH/CONTINENTAL/KEFICO/DELPHI TC17 ECUs

3.MED17_China adds a new password reading function

4. Added BOSCH TC17 ECUs: MINI: MED17.2.2, Ford/MB: DCU17PC01, Hyundai: DCU24, Peugeot:

ME17.9.53, BOBCAT: EDC17C87, McLaren: ME17.8.33

5. Added Renesas chip ECU:

Honda: KEIHIN 37820-xxx-xxx SH7058, DELPHI DCM3.7AP_CHINA SH72544

FAW: DENSO TD112700-xxxx SH72530

Hyundai: DENSO 33910-05005 adds the function of reading DFlash

6. Added Delphi TC2xx ECU: DCM7.1A/DCM7.1B

CG FC200 V1.1.9.0 Registered Version (2024.03.23)

1. Add BOSCH ST10 ECU and add verification function:

Abarth: ME7.9.10

Alfa Romeo: ME7.9.10, MED7.1.1

Audi: ME7.5.30, ME7.5, MED7.5.10

Bentley: ME7.1.1

BMW: ME7.2

Chery: ME7.9.7, M7.9.7, ME7.9.71

Chrysler: ME2.8.1

Peugeot Citroen: M7.4.4, ME7.4.4, ME7.4.9, ME7.4.6, VALEO_J34P

Ferrari: ME7.1.1

Fiat: ME7.9.9, MED7.6.2, ME7.9.10, MED7.1.1, VALEO_J34P

Geely: M7.9.7

Honda: ME7.9.7, ME7.9.3

Hyundai Kia: M7.9.7, ME7.9

Lancia: MED7.6.2, MED7.1.1, ME7.9.10

Maserati: ME7.1.1

Mercedes: ME2.8, ME2.8.1

Mitsubishi: ME7.7.1

Opel: ME7.6.4

Polaris: M7.9.7

Porsche: ME7.5, ME7.8.1, ME7.2, ME7.8

SAIC: ME7.8.8

Volkswagen Seat Skoda: MED7.5.10, ME7.5.30, ME7.5

Toyota: ME7.9.5

Volvo: ME7.0, ME7.0.1

2. Added DENSO ECU:

Mazda: DENSO R2AA/R2AB/R2AC/R2AJ/R2AK/R2AW/R2AX/R2BG/R2BP/R2BR/R2BS, DENSO RF7x/RF8x

Hyundai/Kia: DENSO 33910-05005

Suzuki: DENSO 33920-67P0

3. Other new ECUs:

Chevrolet/Holden/Opel: DELPHI DCM3.7AP

Suzuki: ME17.9.64

Ford: MG1CS017

4. A new button for "Vehicle Fault Code Support List" is added to the main interface.

BUG FIXED:

1. Fix the problem of EEPROM reading error in ME7.5.20/ME7.5.10/ME7.5 and other ECUs

2. Fix the problem that some ECUs such as DQ380/1 report a program error when writing after verifying PFlash.

3. Fixed the problem of failure to modify VIN in new versions of Mercedes-Benz MED17.7.3/ME17.7.7 and Volkswagen MED17.5.25/MED17.5.5 models.

V1.1.8.0  Registered Version (2024.02.01)

1. Added Hyundai/Kia TCU: TC60.x.x

2. M7/ME7/M17 ST10F725/6 ECU adds the function of turning off the anti-theft system

3. GM E80 adds BOOT mode

4. BMW's new ECUs: MEVD17.8.4, ME17.2.42

5. Peugeot/Citroen MED17.4.2 TC1767 new platform mode

6. EDC17C84 adds the function of modifying VIN

BUG FIXED:

1. Fix the problem that some MD1CS089 cannot start the car after reading and writing data.

2. Fix the problem of Mercedes-Benz 9GT TCU cloning failure

3. Fix the problem of failure to write PFlash in GM 6T/6L gearbox

4. Fix GPEC2A and other unrecognized problems

5. Fix the problem that some ECUs such as EDC16C1 and EDC16CP35 fail to write to ExtFlash.

6. Volkswagen MED9.1 MPC563/4 supplementary wiring diagram

7. Hyundai/Kia EDC17CP14 corrected reading password wiring diagram

8. Volkswagen MED17.5 platform mode supplements other wiring diagrams

9. IVECO EDC17C69 supplementary wiring diagram

FC200 V1.1.7.0 Registered Version (2023.11.24)

1.Add Volvo Electric Equipment ECU: MB279700-9500, MB279700-9801, MB279700-9811

2.Add Audi ECU: Simos8.4x, Simos12.x

3.New Hyundai ECU/TCU: SIM2K-240_ ECU, SIM2K-341_ TCU

4.Fix issues with some ECU cloning failures: MED17.3.1/MED17.7.2/MED117.7.3/MED17.5.5 and general Exx series, etc

5.Fix the issue of some universal ECU recognition failures: E78/E39/E39A/E80, etc

6.Lovol added ECU: EDC17CV43

7.BMW adds ECU: MEVD17.8.4

8.Added ECU for PFlash verification algorithm: MSV90, SID807EVO, EMS3110, SIM2K-240_ ECU, SIM2K-341_ TCU, Simos12. x, Simos8.4

9.Add and modify ECU for VIN: CPGDSH1.21.6, CPGDSH2.2x. x

10.Optimize the PFlash verification algorithm for DQ380

11.Fix some bugs and optimize software performance

FC200 V1.1.6.0 Registered Version (2023.10.16)

1.Added CONTINENTAL TC17 type engine computers (BOOT mode): SID310, SID807EVO, EMS3110;

2.Added CONTINENTAL SPC5xx type engine computers (BOOT mode): GPEC3, GPEC2A, GPEC4, GPEC4LM, GPEC2;

3.Added CONTINENTAL TC17 type engine computer (BOOT mode): SIMOS8.2x, EMS2511, EMS24xx, EMS2205, SDI9, SDI3, SDI4, SDI10.x, SDI21.x;

4.Added new GM type engine computer: E98;

5.Added the Flash verification function of the gear box computer: DQ380, 8HP, 7DCT300, 9GT-VGS-NAG3;

6.Added PFlash verification function for CONTINENTAL TC17 engine computer;

7.Added the function of independently reading and writing DFlash/PFlash/ExtEEPROM/ExtFlash: MSD80/MSD81/MSD85/MSD87/MSV90/SIM271KE;

8.Fix some BUGs and optimize software performance.

FC200 V1.1.5.0 (2023.08.18)

1.New platform mode engine for Bosch MPC5xx class: (Note: To be used with MPC5xx adapter)

EDC16U31、EDC16C1、EDC16C10、EDC16C31、EDC16C32、EDC16C34、EDC16C35、EDC16C36、EDC16C37、EDC16C39、EDC16C41、EDC16C9、EDC16CP33、EDC16CP34、EDC16CP36、EDC16CP39、EDC16U34、EDC16UC40、ME9.1.1、ME9.6.1

2.Newly added BOSCH TC17 series platform and boot mode engines: DCU17HD01、DCU17PC42、DCU17PC43、DCU17CV51、DCU17PC_ DNX

3.KEFICO TC series engines add PFlash verification function

4.GM series engines add PFlash verification function

5.Fix the issue where the 8HP transmission does not support the E-series (R5F72519R)

6.Optimize the verification algorithm for VGS2-FDCT type transmissions

7.Fix some MD1CS089 engine connection failure issues

8.Fix some bugs and optimize software performance

FC200 V1.1.4.0 Registered Version  NEW (2023.07.17)

1.Newly added CONNECTAL TC17 platform mode engines: SDI6, Simos8.3x, Simos8.5x

2.Newly added CONNECTAL TC17 BOOT mode engines: SDI6, SDI7, Simos8.1x, Simos8.3x, Simos8.5x, SID208, PCR2.1

3.BOSCH MPC5xx chip ECU adds verification function

4.New platform mode engine: MD1CS089

5.New Volkswagen transmission mileage repair function: DQ200 TC1784

6.Fix the function of modifying the VIN of Volkswagen ME17.5.22/24/26 and other engines

7.Fix some PCR2.1 write PFlash failure issues

V1.1.3.0  Registered Version NEW (2023.05.24)

1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6

2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8

3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382

4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions

5.Add Mercedes Benz CRD2. x MPC556x engine platform mode

6.DELPHI TC17 chip ECU adds PFLASH verification function

7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5

8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function

9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions

CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023

1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39

2. Add GM E37, E39A, E78, E80 and E83 engine platform mode

3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function

4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester

5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function

6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function

7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4

8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes

CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023

1. Setup interface adds-Server Selection function

2. Optimize the device activation interface (add the "Activate" prompt)

3. Repair the failure problem of the Bosch query abroad

4. Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90

5. New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2

6. New BOSCH TC17 engine platform mode: ME17 TC1728 (China)

7. New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1

8. New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766

9. Newly modified VIN model: MED 17.8.3

CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:

1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx

2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52

3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH

4. Added password reading function in the platform mode of GM engine E39

5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines

6. Added BOSCH platform engine: EDC17CV53

7. Fix some bugs and optimize software performance
