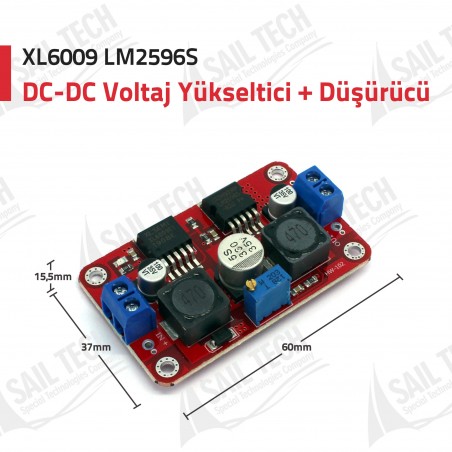

The DC-DC Voltage Converter is an adjustable automatic step up-down converter with LM2596S and XL6009 integrated on it.

In this way, it can both reduce and increase the input voltage. With the help of the trimpot on it, the desired voltage value can be set. The DC DC Voltage Converter supports up to 3A input current.

• Properties of XL60 XL6009 LM2596S DC-DC09 LM2596S DC-DC
• Recommended Input Voltage: 3.5-28V
• Input Voltage Maximum: 32V DC
• Recommended Input Current: 1A
• Input Current Maximum: 3A (Refrigerant must be used for above 1A.)
• Recommended Output Voltage: 1.25V-26V
• Output Voltage Maximum: 32V
• Output Current: 1A
• Output Current Maximum: 3A (Refrigerant must be used for above 1A.)
