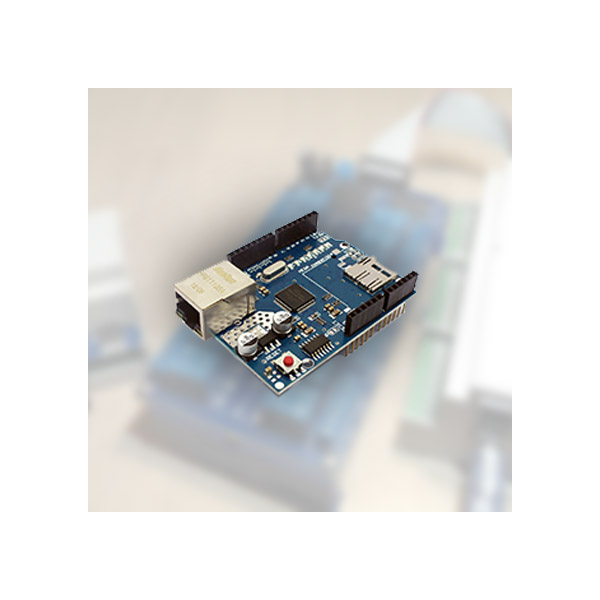

What is the Arduino Ethernet Shield W5100? How is the Use?

Since the latest version of the

board has an Arduino 1.0 pinout, it is also compatible with Arduino/Genuino boards. It is a card based on an ethernet chip, which is used to connect to a wired Internet network.

Since the latest version of the

board has an Arduino 1.0 pinout, it is also compatible with Arduino/Genuino boards.  It is a card based on an ethernet chip, which is used to connect to a wired Internet network. after installing the Arduino Ethernet Shield board on an Arduino board and connecting to a wired internet network, you can do a few simple operations and start using it.

By connecting the module, you can log in to web browsers or upload data by connecting to sites. it supports up to 4 socket connections. Arduino Ethernet Shield is compatible with both TCP and UDP.  SD card usage feature is available. The Micro SD card reader on the card can be accessed from the SD library.

The Arduino Ethernet Shield board has a reset controller on the device to make sure that the W5100 chip is reset correctly when powered on.

Since the W5100 and the SD card use the same SPI line, you can activate only one of them. If you want to use both at the same time, you should pay attention to the fact that the library used is shared.

General Specifications of Arduino Ethernet Shield W5100

• IEEE802. compatible with 3af. < / li>
• Input voltage December from 36V to 57V
• Overload and short circuit protection
• 12V Output
• 1500 V Insulation
• It has an RJ45 Ethernet jacquard.< / li>
• The shield contains a set of information LEDs.< / li>
• The reset button on the Shield resets both the W5100 and the Arduino board.< / li>

Arduino Ethernet Shield and similar device uses have started to become quite widespread. The progress of today's technology in this direction also sums up the situation for us. However, it should not be difficult to learn to use it and make it a habit.

Thanks to these devices, which offer so many possibilities and conveniences, it is now possible to see more convenient uses and operations performed in a shorter time.

The fact that it is affordable also gives a plus feature to the product. When you look at the market value of most products, the price will not force you.

The indicators on the device and their usage methods are explained below. We tried to convey it in an explanatory way as much as possible.

Instrument Panels on the Circuit and Their Meanings

ON : Indicates that the card and Shield are connected to the power.

COLL : Flashes when network intercepts are detected.

LINK : Indicates the presence of a network connection, and the Shield flashes when data is transmitted or received.

TX : Flashes when data is sent.

FULLD : Indicates that the network connection is full-duplex.

100 M : 100 Mb/ S indicates the presence of a network connection.

RX : Flashes when data is received.

It is possible to access more detailed information about the product or more products from our website.  When you follow the instructions of the device, you can start using it without any problems and you will not have any problems.

If you encounter any technical problems with the Arduino Ethernet Shield, you can contact us at our contact numbers.
