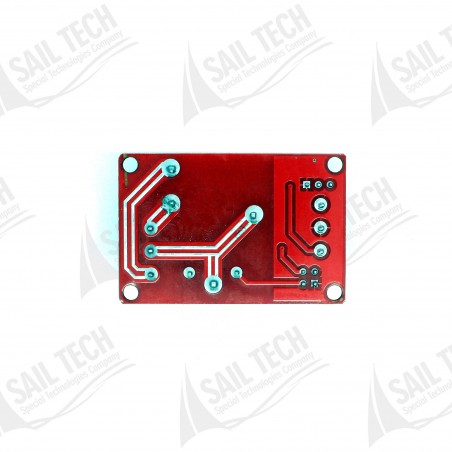

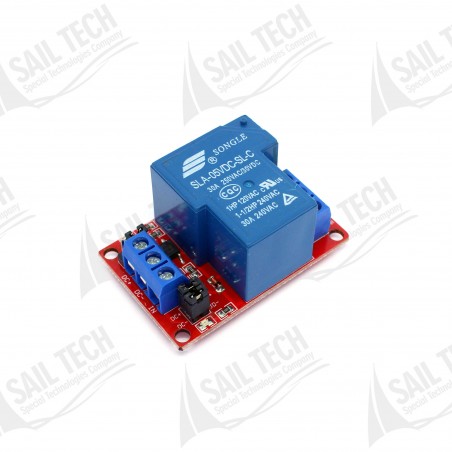

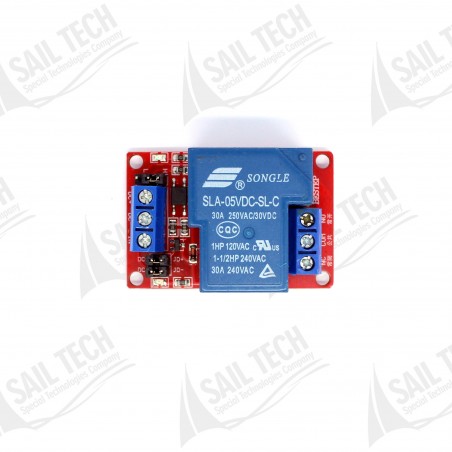

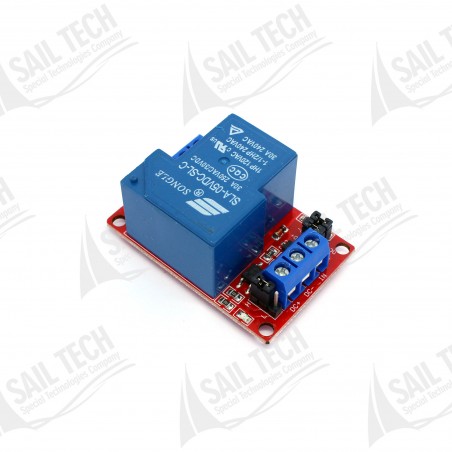

5V 30A 1 Channel Relay Module

5V 30A 1 Channel Relay Module

$2.99

5v 30a 1 Channel Relay is a relay module with chip optocoupler isolation, strong driver capability, stable performance, 30a relay and 5mA trigger current.

Quantity
There are not enough products in stock


  • Secure Payment Secure Payment
  • Fast Delivery Fast Delivery
  • Easy Returns Easy Returns
  • Satisfied Customer Satisfied Customer

5v 30a 1 Channel Relay is a relay module with chip optocoupler isolation, strong driver capability, stable performance, 30a relay and 5mA trigger current.

The maximum load is normally open interface: AC 250V/30A, DC 30V/30A;

Module working voltage: 5V

A high level or low level trigger can be set by the jumper.

Thanks to its distortion-resistant design, the relay will not work even if the control line is interrupted.

Power indicator light: Green, relay status indicator light: Red.

The interface design is user-friendly. All interfaces can be connected directly through the terminals, so it is very practical.

Module dimensions: 50mm x 33mm x 24mm (length*width*height)

Product net weight: 36g

Relay voltage: 5V

Working Current: 5 mA

Maximum current: 190 mA

Triggering current: 2-4 mA

5V 30A 1 Channel Relay Module Interface Specifications:

   1.DC+: DC power supply positive pole

   2. DC-: DC power supply negative pole

   3. IN: signal trigger pin

   4.JD+: relay control voltage is positive

   5.JD-: relay control voltage is negative

   6.Dc + and JD +, abbreviated with jumper cap, DC and JD-shortened with jumper cap, is the same voltage between the trigger terminal and the relay control terminal.

   7.High and low level trigger mode selection. Jumper and L pin connection, pin is low level trigger Jumper and H is pin connection, pin is high level trigger.

   8.Normally closed pin (NC): relay normally closed pin

   9.Common pin (COM): relay common pin

   10.Normally opened pin (NO): relay normally opened pin

Package contents:

  • 1 x 1 Channel 5V Relay Module
